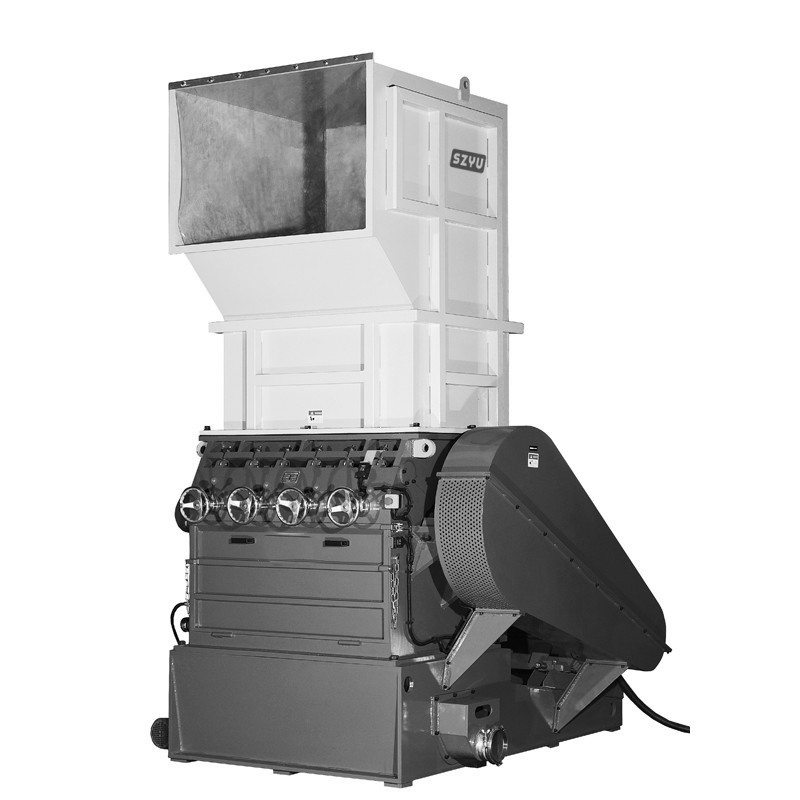

SPC SERIES HEAVY CRUSHER

SPC series is the heavy-duty crusher with various rotors and hoppers .It is suitable for crushing different materials in plastic industry. To cater for special and top usage request, such crusher is with completely welded steel structure . The v-shaped blade design improves cutting efficiency and reduces  dust during recycle processing. According to different materials and capacities, crushers can be additionally equipped with mute device, discharge system and wear-resistant protective device, such as harden-surfaced rotor and other major devices made of wear-resistant steel, etc.


PRODUCT MAIN CHARACTERISTICS

1、High quality thickened-steel welded with compact structure;

2、Blade: made of high quality CrMoV wear-resistant alloy steel;

3、Bi-parting chamber: design convenient for knife change;

4、Rotor: equipped with replaceable wear-resistant plates on both sides;

5、With many structures optional, good to improve efficiency and extend usage life;



Product Features
Large handling capacity, large discharge, uniform crushing strength

  • PRODUCT MAIN CHARACTERISTICS

    1、High quality thickened-steel welded with compact structure;

    2、Blade: made of high quality CrMoV wear-resistant alloy steel;

    3、Bi-parting chamber: design convenient for knife change;

    4、Rotor: equipped with replaceable wear-resistant plates on both sides;

    5、With many structures optional, good to improve efficiency and extend usage life;

Product Parameters
Model  SPC8022 SPC8037 SPC10045
Rotor Diameter （mm） 320 420 420
Roto speed （rpm） 580 530 530
Quantity of rotor knives （PCS） 3*2 3*2 3*2
Quantity of fixed knives （PCS） 2*2 2*2 2*2
Screen diameter （mm） 12 12 12
Inlet size （mm） 800*400 1000*500 1000*500
Cutting chamber （mm） 800*320 1000*420 1000*420
Dimension （L*W*H）（mm） 1750*1650*1900 1780*1650*2400 1780*1900*2400
Power （kw） 22 37 45
Weight （kg） 1750 2900 3300


Model 型号 SPC10055 SPC12075 SPC12090
Rotor Diameter （mm） 520 520 660
Roto speed （rpm） 462 462 462
Quantity of rotor knives （PCS） 5*2 5*2 5*2
Quantity of fixed knives （PCS） 2*2 2*2 2*3
Screen diameter （mm） 12 12 12
Inlet size （mm） 1000*700 1200*700 1200*900
Cutting chamber （mm） 1000*520 1200*570 1200*660
Dimension （L*W*H）（mm） 2070*2050*3000 2070*2250*3000 2450*2350*4200
Power （kw） 55 75 90
Weight （kg） 4300 5500 7800

Model 型号 SPC160132 SPC160160
Rotor Diameter （mm） 600 860
Roto speed （rpm） 415 415
Quantity of rotor knives （PCS） 5*4 7*4
Quantity of fixed knives （PCS） 2*4 2*4
Screen diameter （mm） 12 12
Inlet size （mm） 1600*900 1600*1000
Cutting chamber （mm） 1600*660 1600*1000
Dimension （L*W*H）（mm） 2450*2850*4300 3000*2900*4800
Power （kw） 132 160
Weight （kg） 10000 12000
