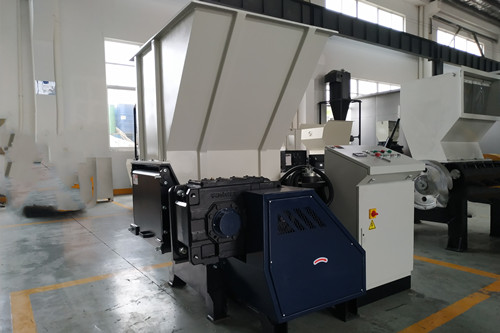

SINGLE SHAFT SHREDDER
The SR series single shaft shredder is popular size reduction machine used for materials that contain minimal amounts of metal, such as plastic, paper, wood, waste wires and cables. The screen mesh size is determined by material nature and subsequent processing requirements. The shredded particles can then be reused or further processed. An intelligent electric control provides a high degree of machine safety.
Applications:
Film
Wire and cables
Glass fiber
Wood scrap
Solid waste

Product Features
Large handling capacity, large discharge, uniform crushing strength
  • Rotor
    “V” arrangement rotor with double side edge cutters prevent material build up. The rotating blades are made of CrMoV high alloy wear resistant steel, with different configurations and compositions available. The cutter blades feature a long service life allowing for multiple reuse before needing to be replaced.
  • Pusher system
    Pusher system: reinforced baseplate can reduce the impact caused by material entering the cutting chamber. A dust collection device is equipped at the bottom of the pusher system to guarantee the long-term stable performance of internal components.
Product Parameters

Model SR600 SR750 SR900 SR1400 SR1600 SR2100
Main shaft speed(rpm) 73 73 73 73 73 73
Ram travel(mm) 500 820 820 820 1000 1000
Rotor diameter(mm) Φ220 Φ400 Φ400 Φ400 Φ480 Φ480
Number of rotor blades(pcs) 23 44 52 80 94 122
Number of fixed blades(pcs) 4 6 6 10 12 16
Discharge height(mm) 500 610 610 610 950 950
Screen holes diameter(mm) 40 40 40 40 40 40
Motor power(kw) 18.5 37 45 75~90 2x55~2x75 2x75~2x90
Hydraulic power(kw) 1.5 2.2 2.2 5.5 7.5 7.5
Cutting chamber dimensions(mm) 540x600 830x708 830x840 830x1302 1000x1533 1000x1995
Overall dimensions(LxWxH)(mm) 1800x1350x1700 2810x2000x2115 2810x2100x2115 2810x2890x2115 3475x4100x2700 3475x4900x2700
Weight(kg) Approx 1600 Approx 4460 Approx 4560 Approx 6200 Approx 10800 Approx 13000
